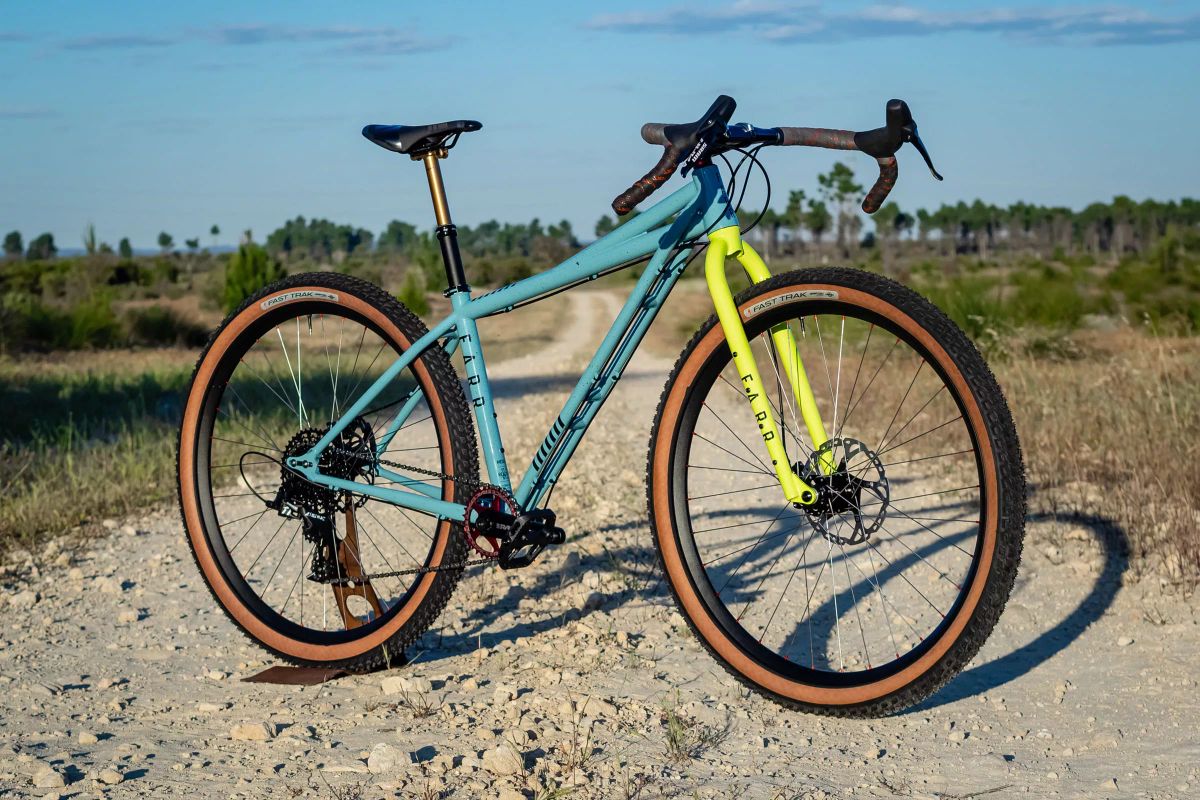

Farr’s New Twin-T Frame is Wild, in a Good Way
I’m not really sure what to call Farr’s new Twin-T frame. It’s part mountain bike, part gravel bike, a little bit BMX and a whole lot of awesome.

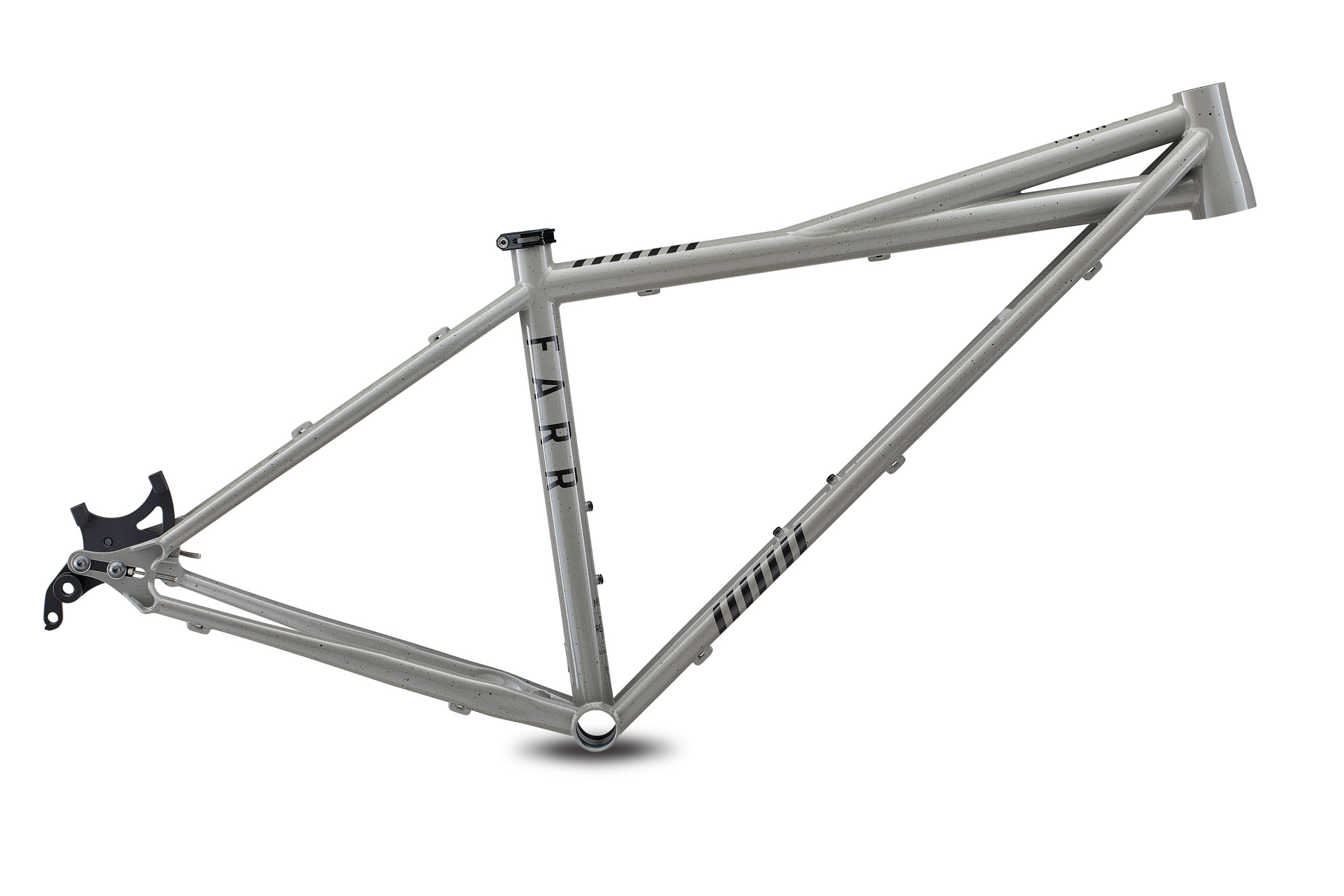

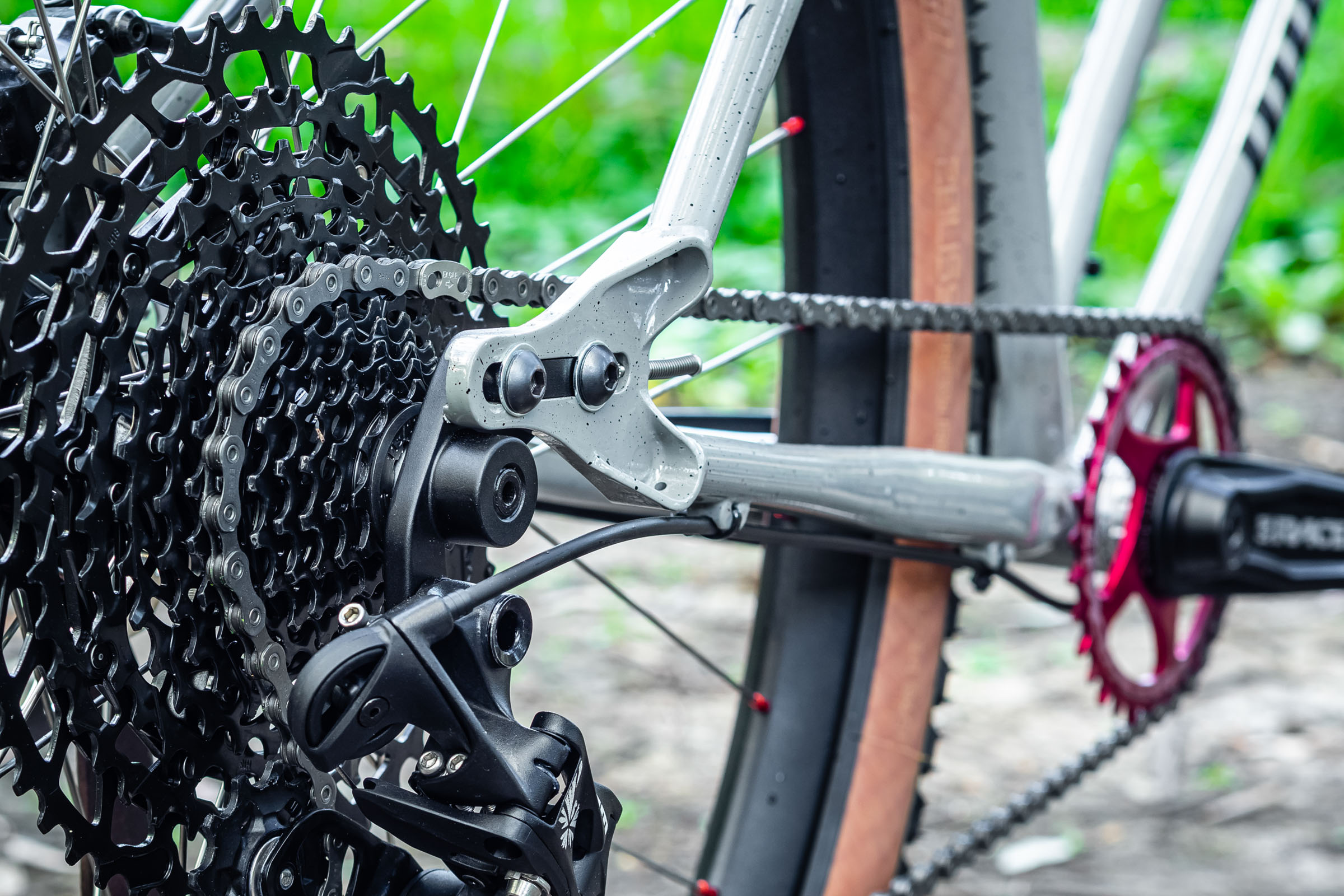

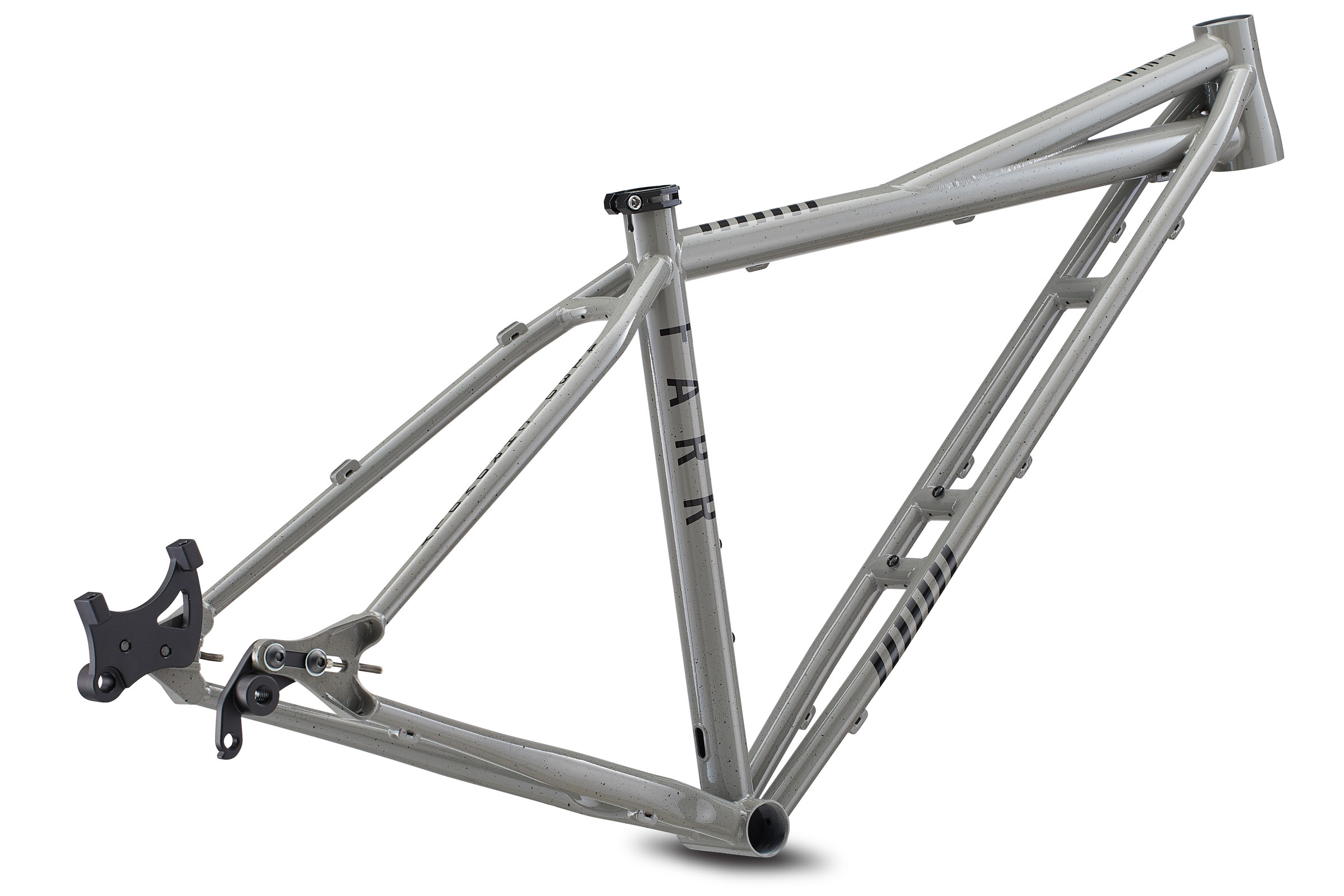

Farr’s Twin-T frame is sold with a headset, rear axle, and seat clamp. The frame is ready to roll with two bottle mounts in the main triangle, internal dropper post routing, external cable routing, and sliding dropouts. You can build the Twin-T up in a 29 (up to 2.35″) or 27.5 (up to 2.6″) tire configuration. Up front you can choose to go ridged or throw on a fork with 120mm of travel.
Farr Twin-T Specifications
| FRAME | BUTTED CROMO CUSTOM TUBING, TAPERED HEADTUBE, AVAILABLE IN 3 SIZES, BOOST 148 REAR SPACING |
| DRIVETRAIN | DESIGNED FOR 1X DRIVETRAIN, 30 TO 36T RECOMMENDED, 52MM CHAINLINE |
| FORK | DESIGNED AROUND 510MM AXLE-TO-CROWN FORK / 120MM SUSPENSION TRAVEL RECOMMENDED |
| SEATCLAMP | 34.9mm |
| SEATPOST | 31.6mm |
| BOTTOM BRACKET | 73mm THREADED |
| TYRE SPEC | 74mm CLEARANCE, 29 X 2.35 MAX ( 27mm INTERNAL RIM ) RECOMMENDED, ALSO 27.5 x 2.6 COMPATIBLE |
| ATTACHMENTS | 2X BOTTLES IN MAIN FRAME, DROPPER POST READY WITH INTERNAL CABLE IN SEATTUBE |
| FRAME SPACING | 148 X 12mm / PITCH 1.75mm |
| FORK SPACING | NIL |
| BRAKE SPEC | POST MOUNT, 160mm ROTOR |
| HEADSET SPEC | INTEGRATED, 42mm UPPER, 52mm LOWER |
| ACCESSORIES | INCLUDES HEADSET, REAR AXLE, SEATCLAMP |
| WEIGHT | 3.26KG ( RAW, BEFORE PAINT ) – SIZE 43cm ( MEDIUM ) |

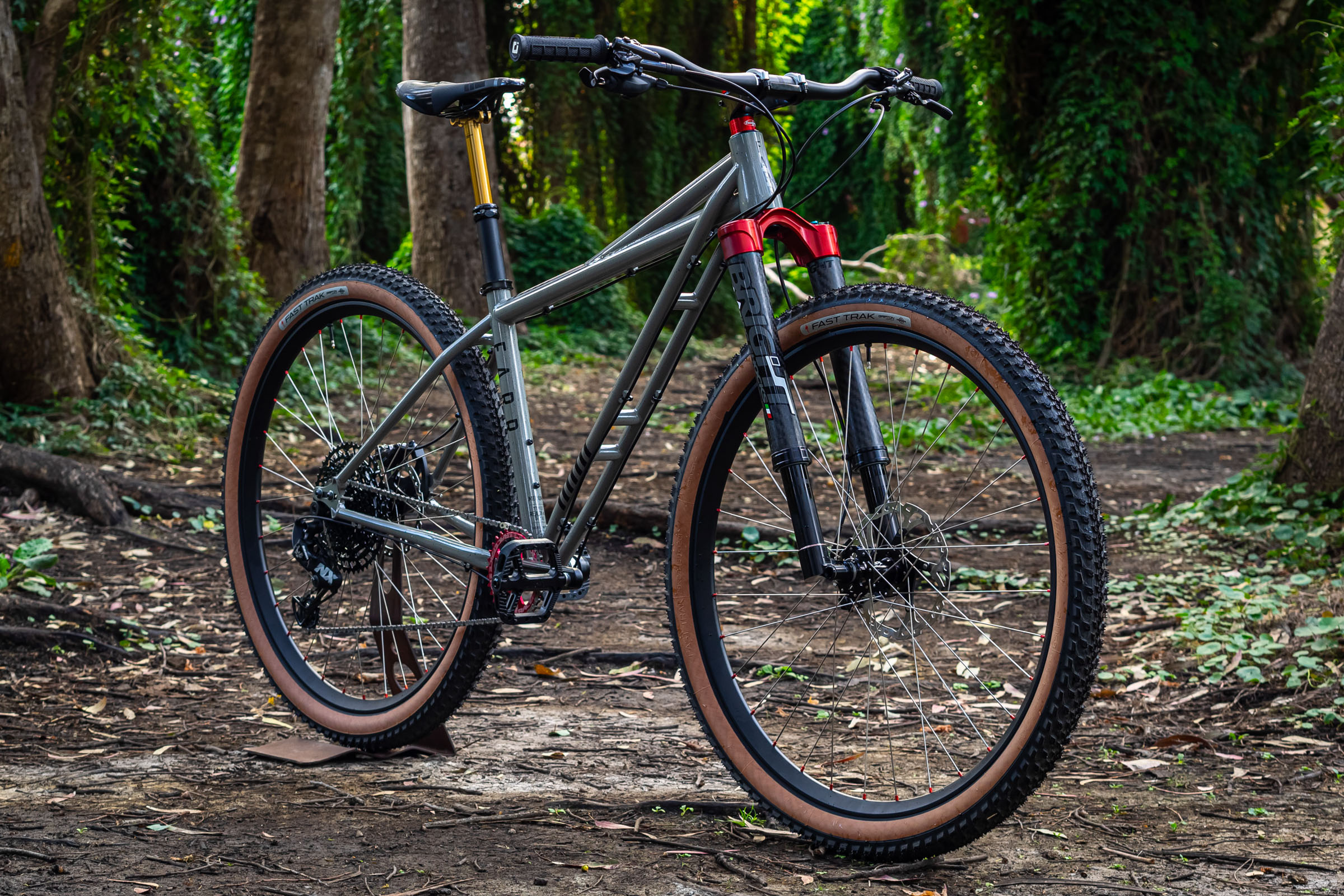

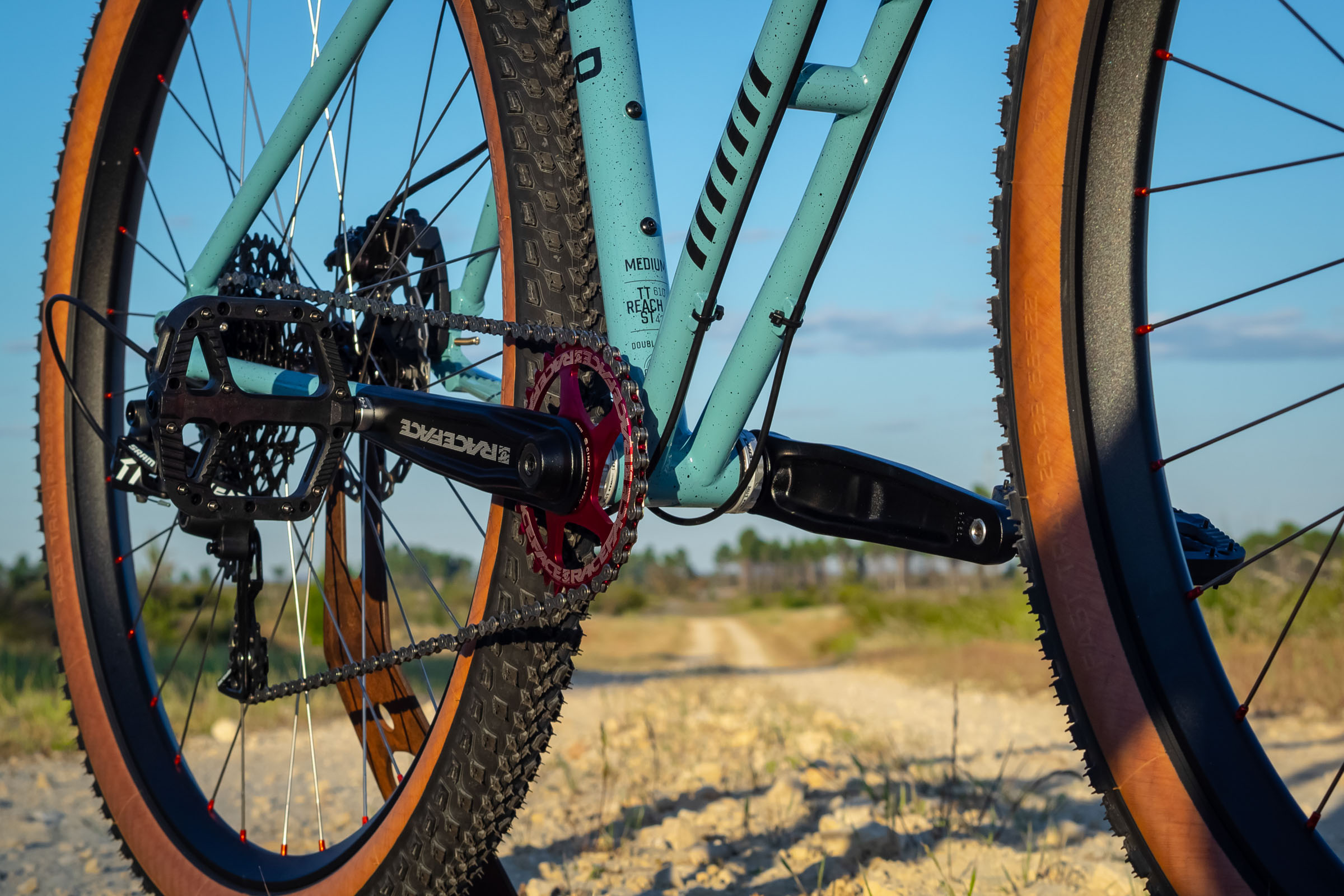

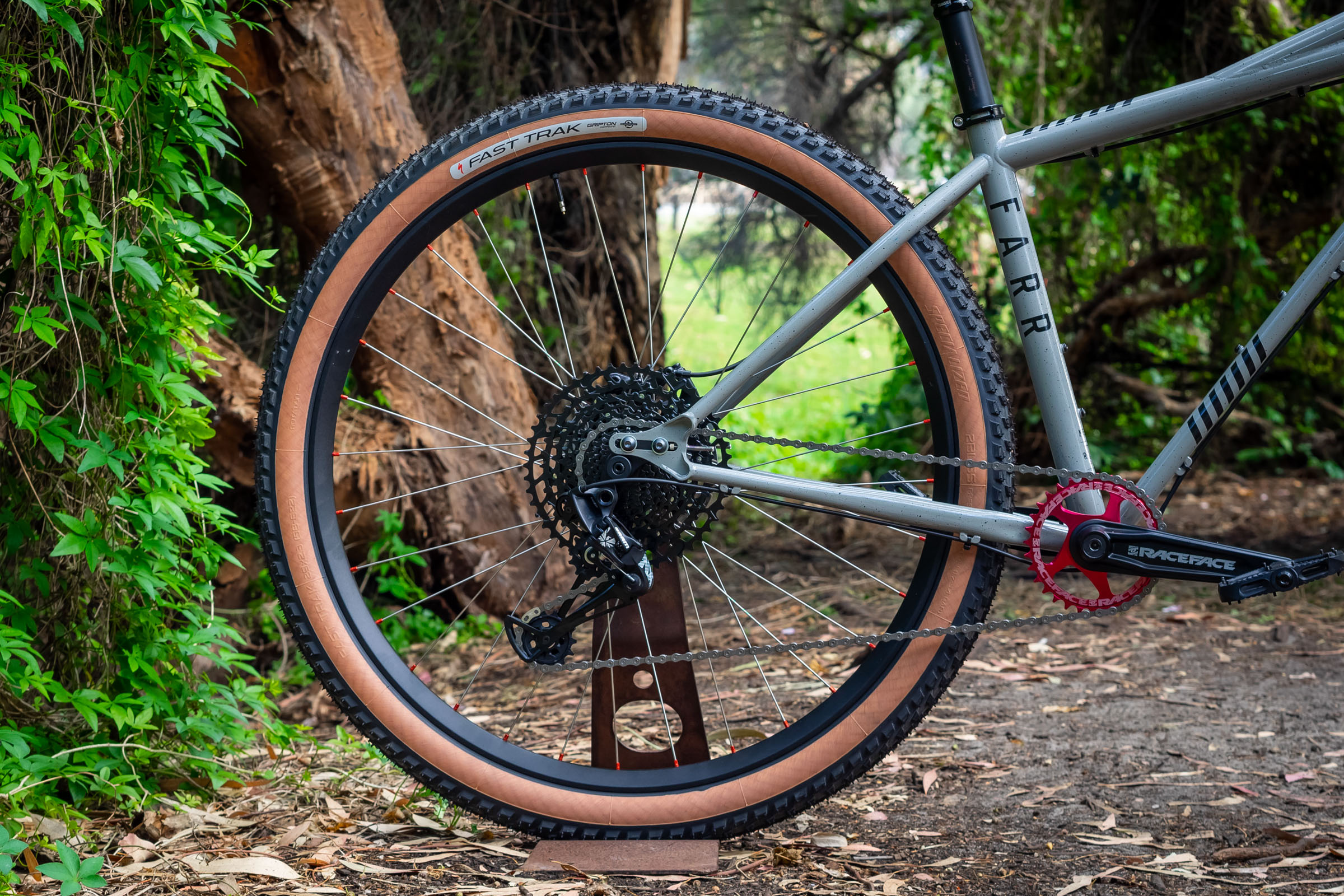

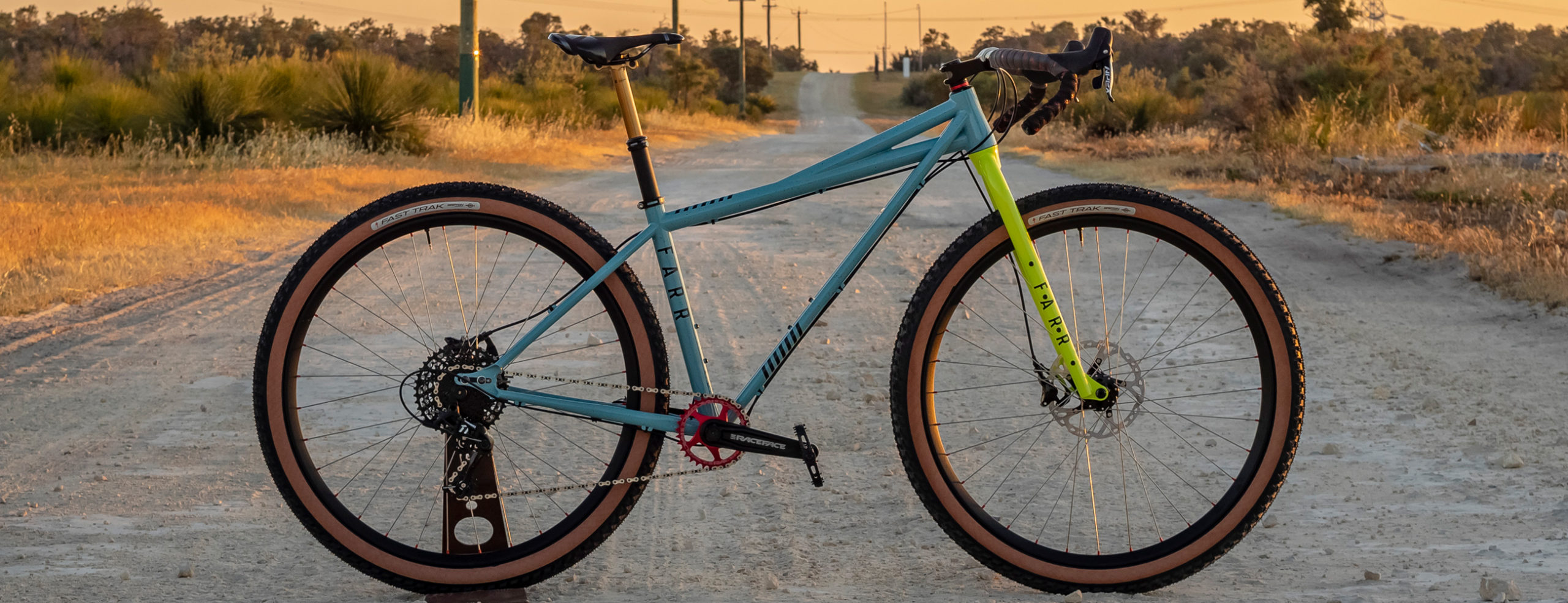

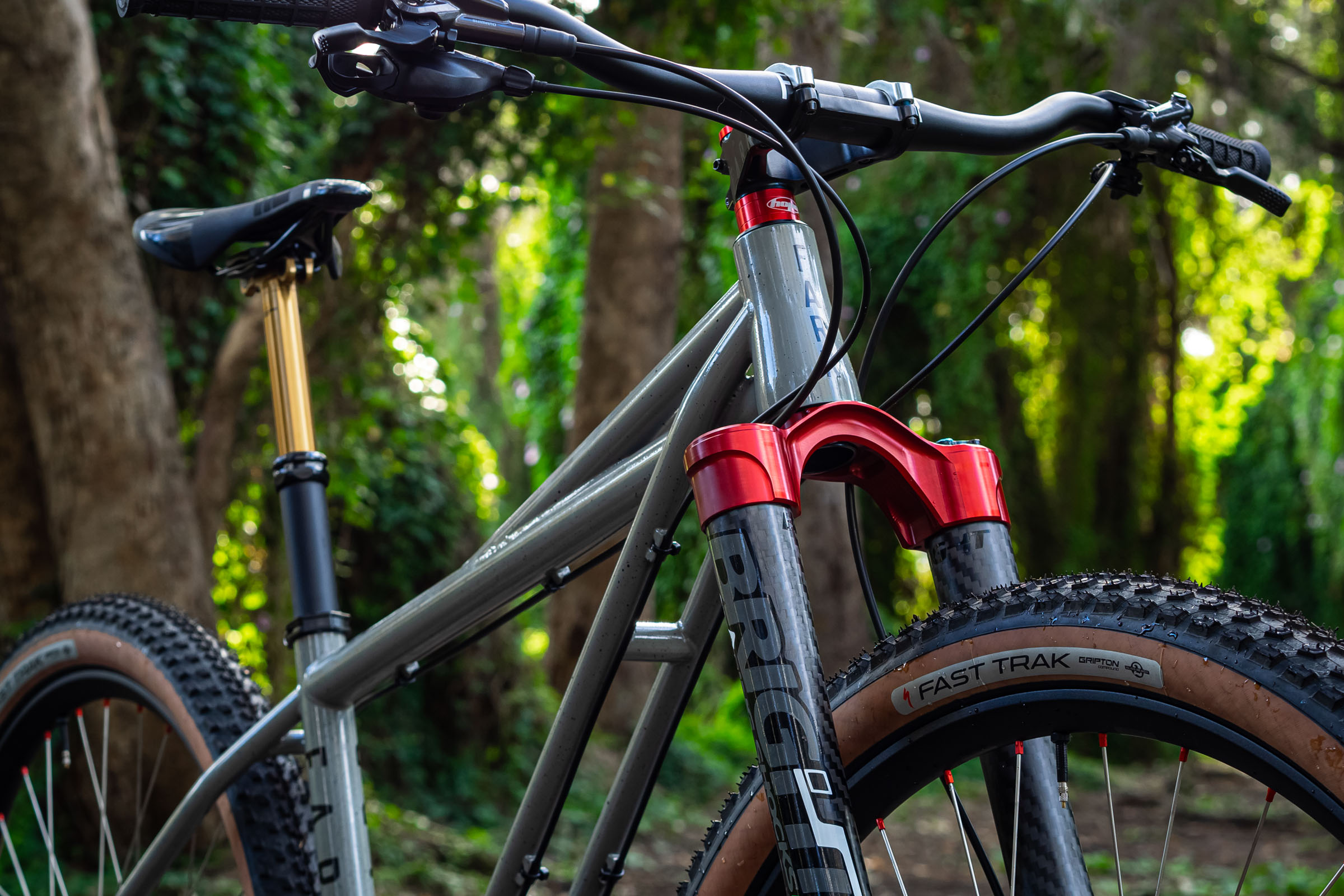

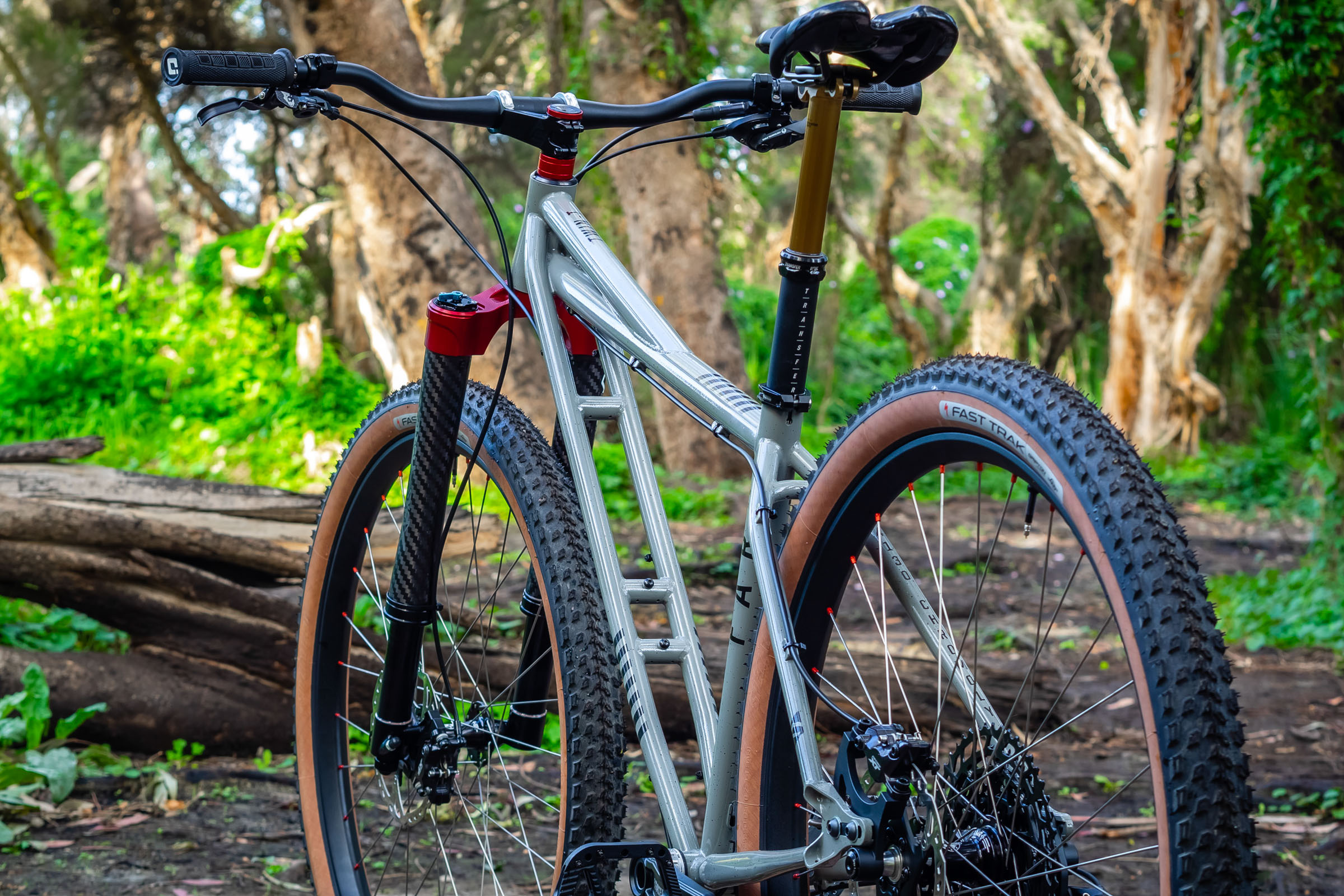

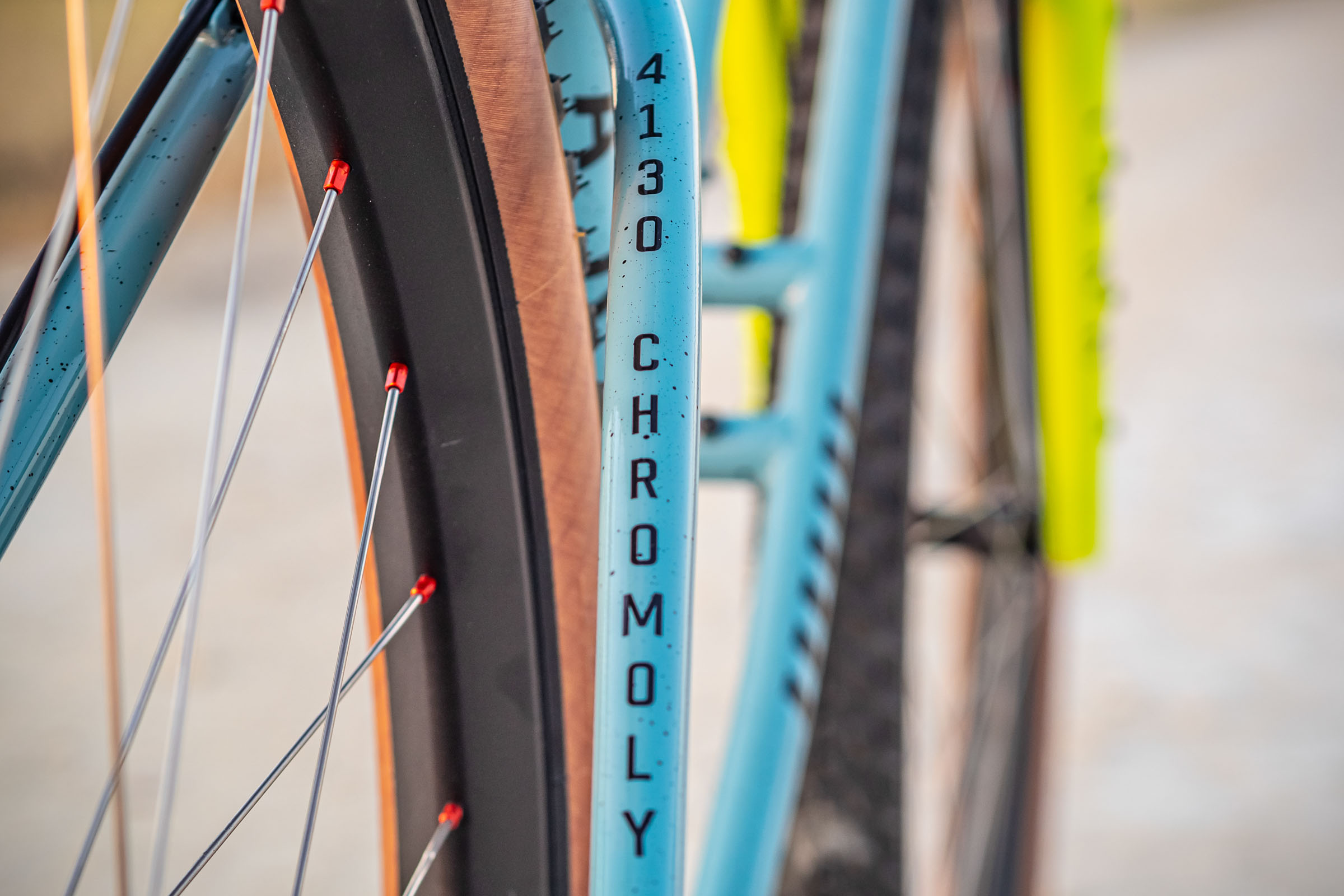

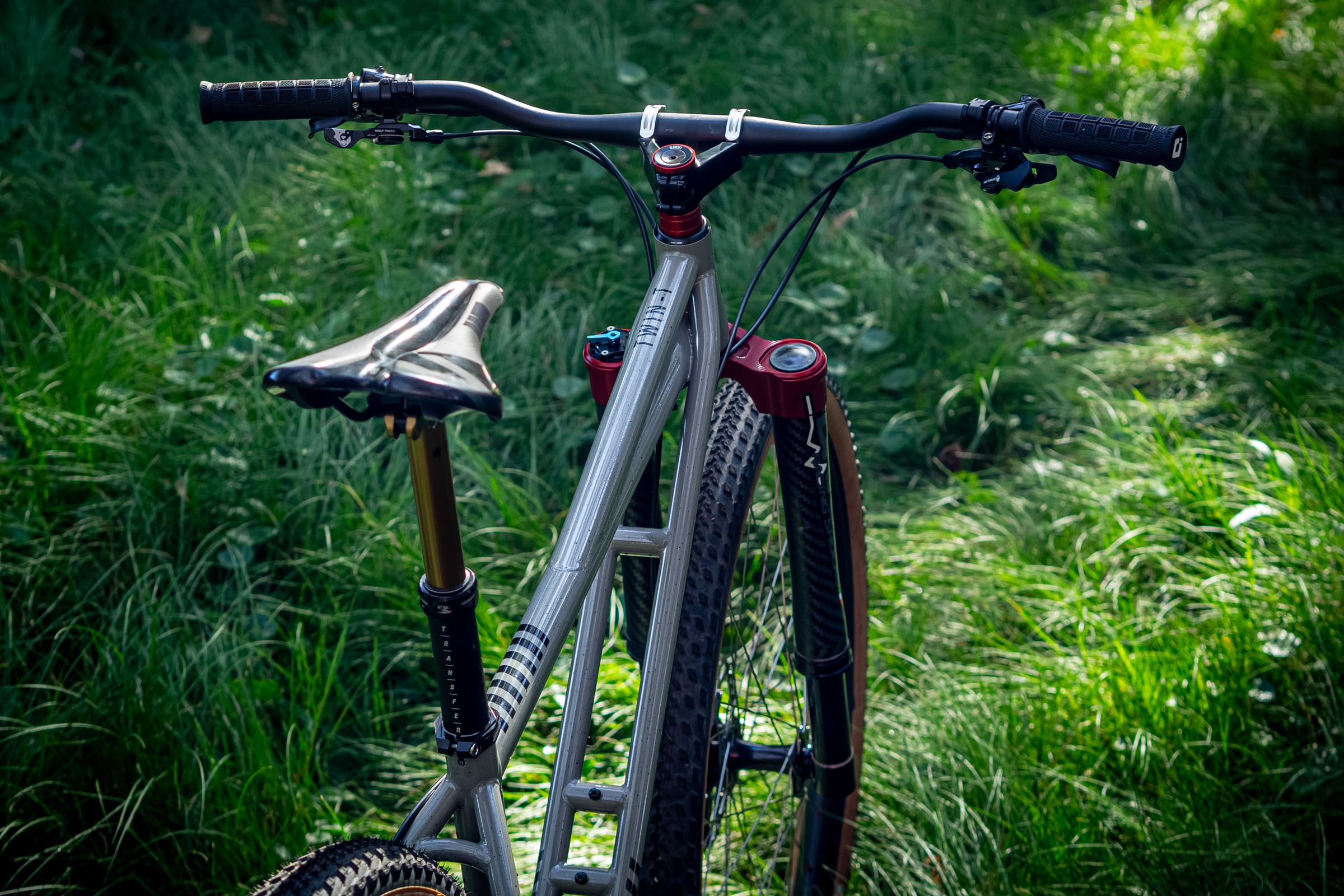

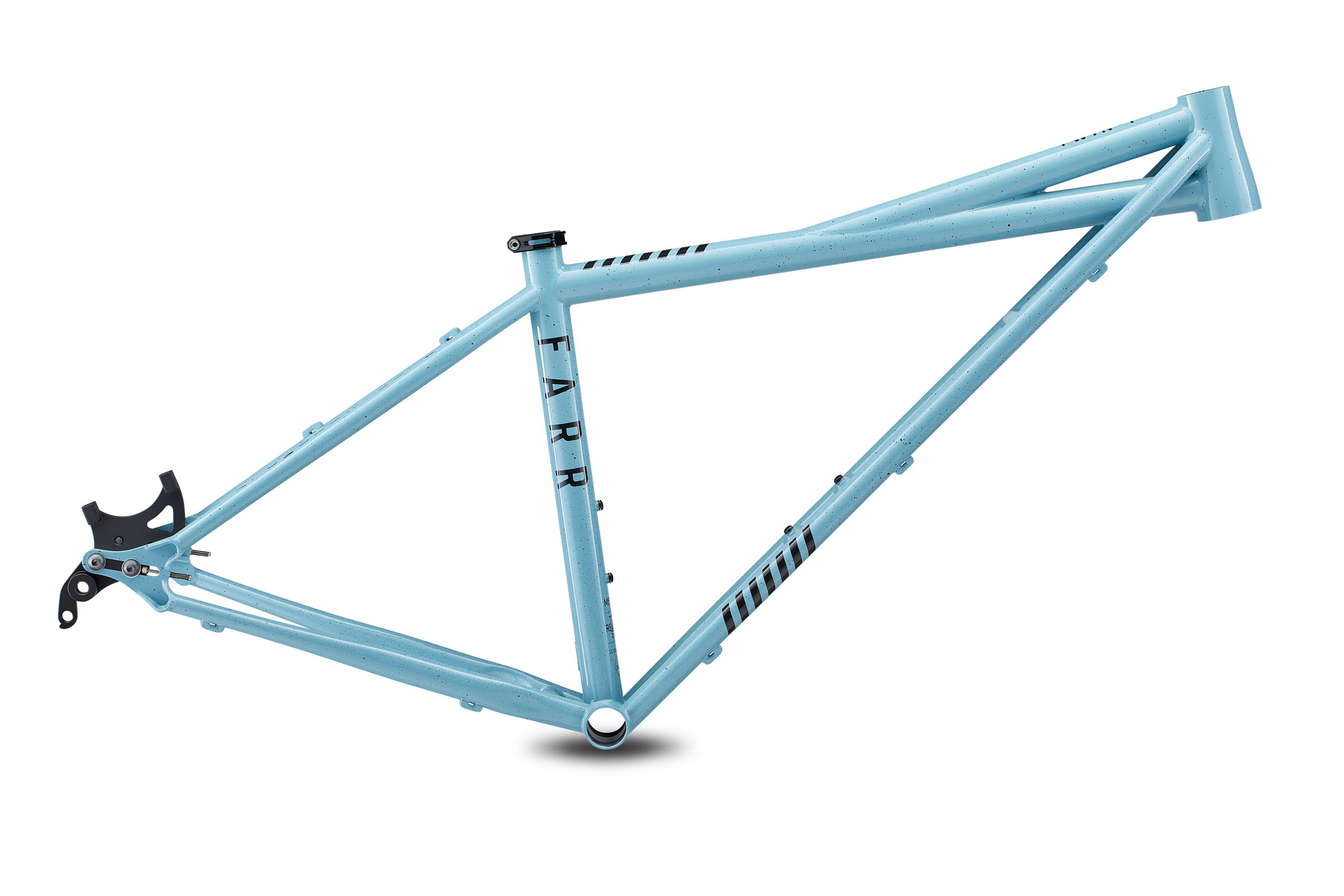

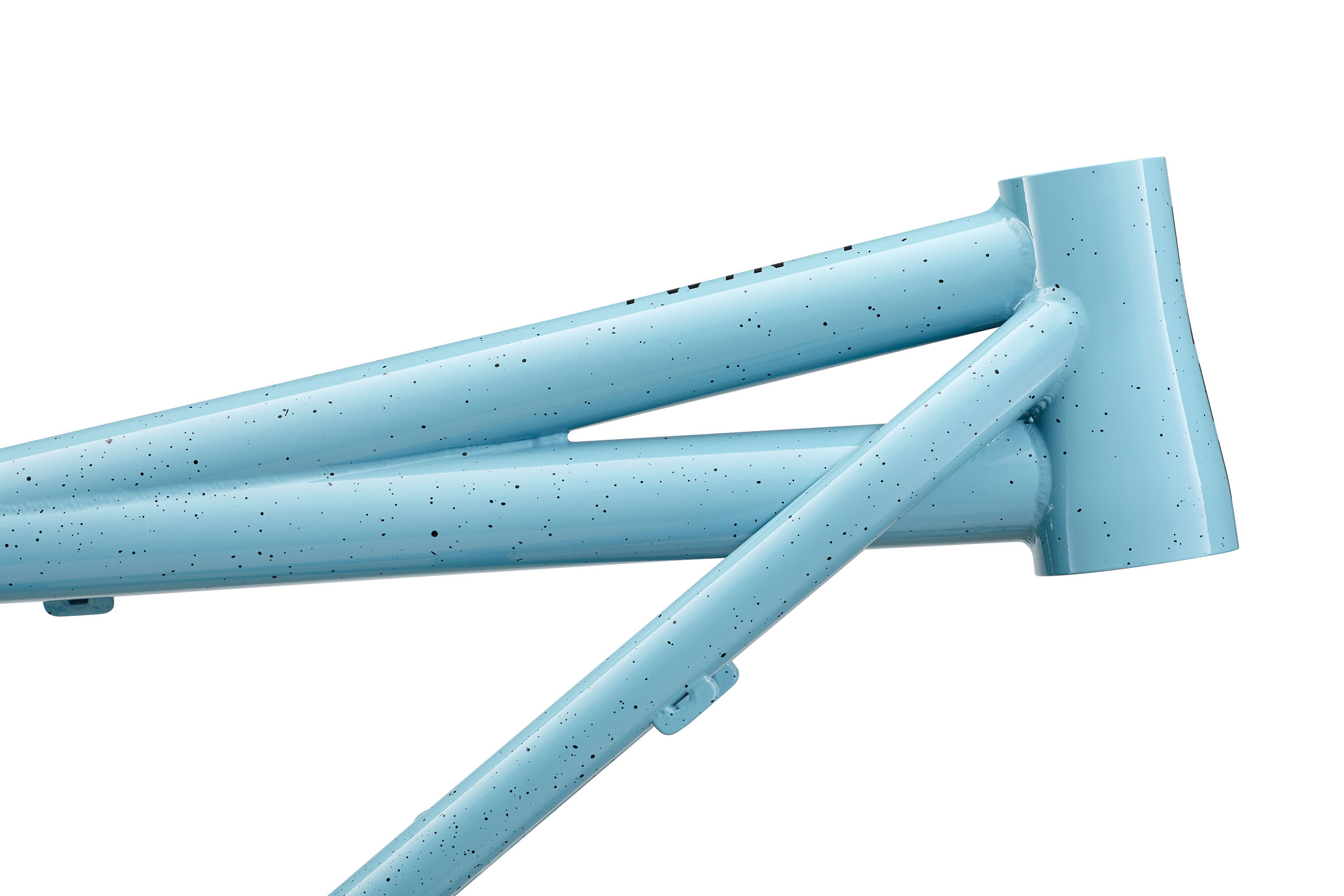

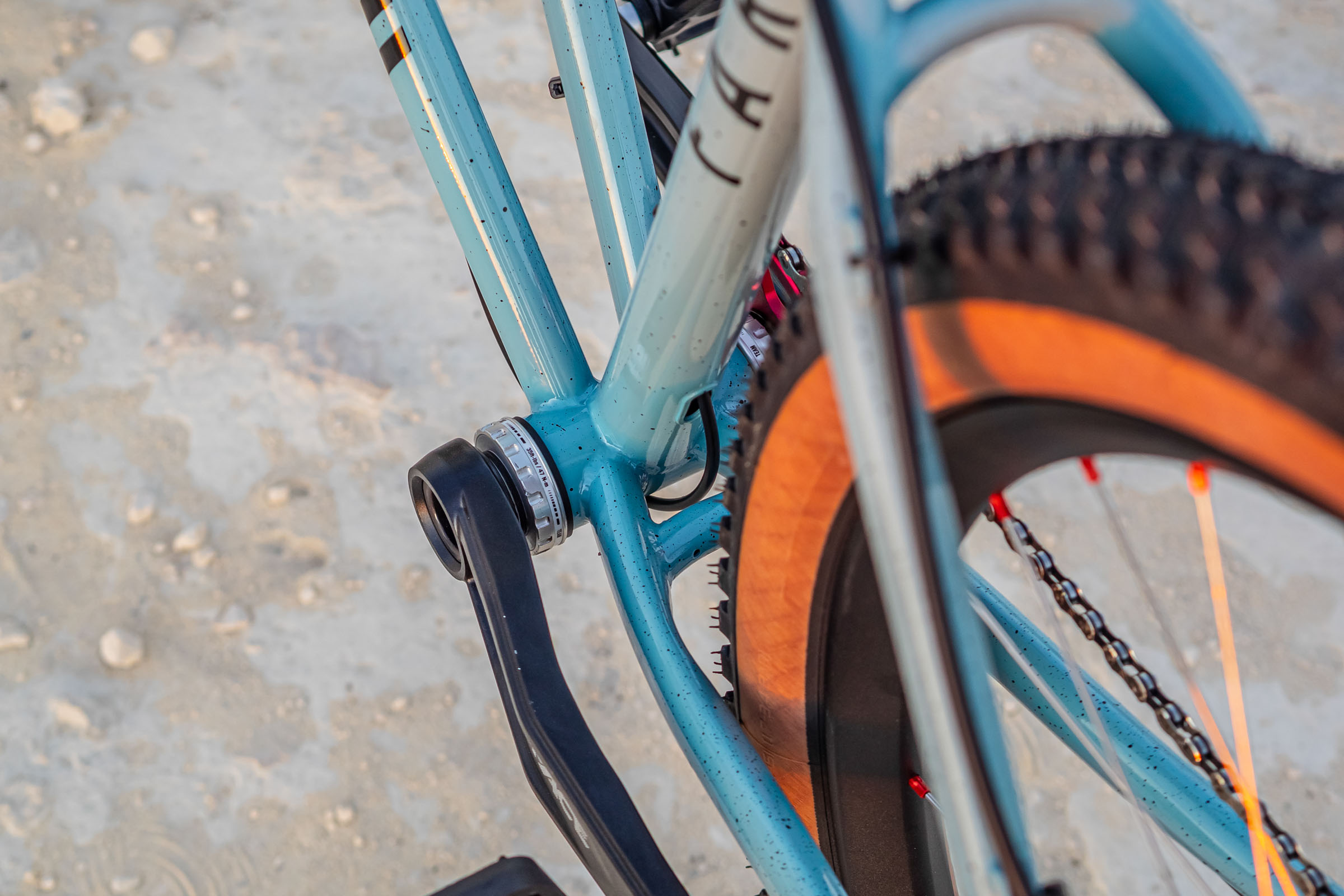

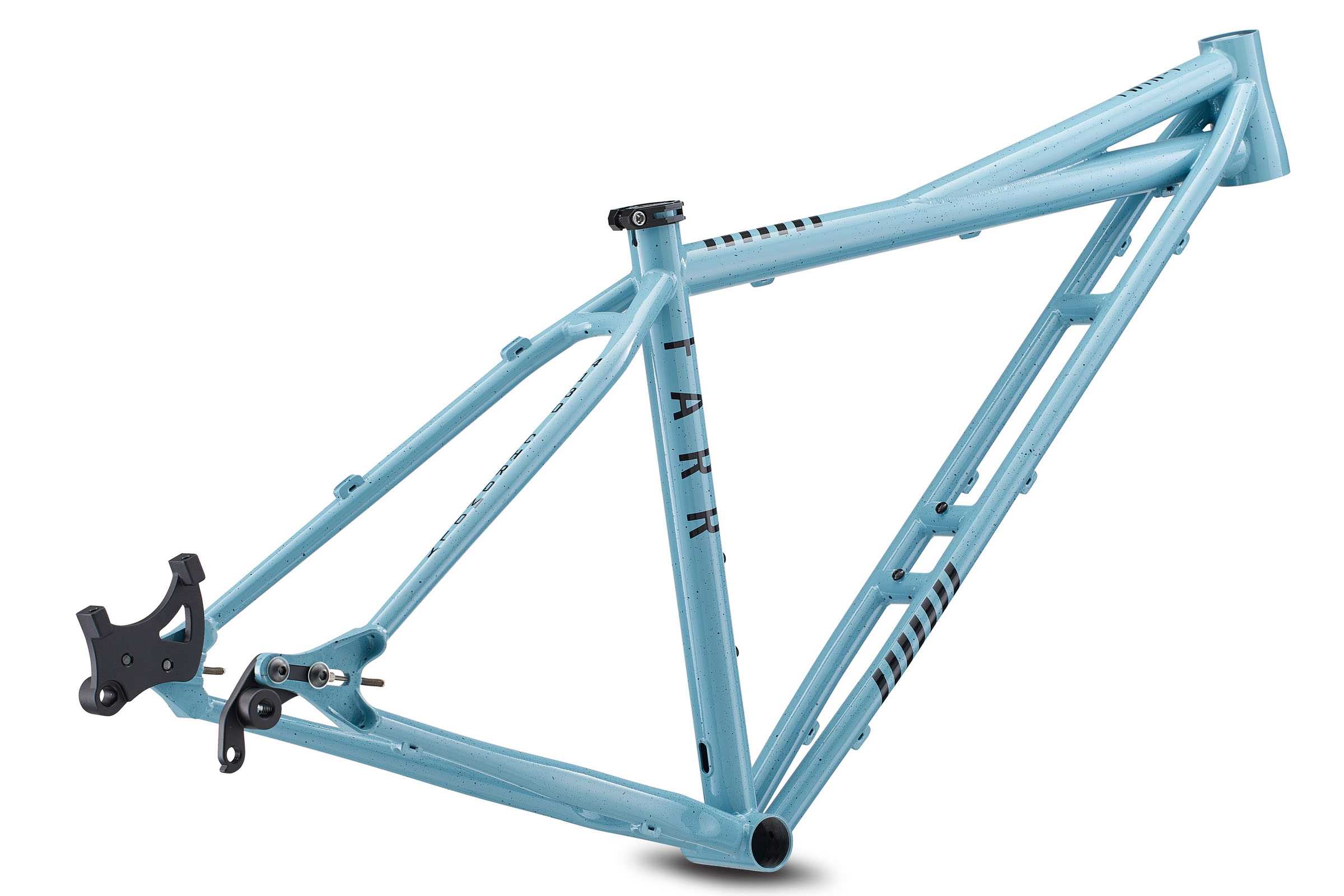

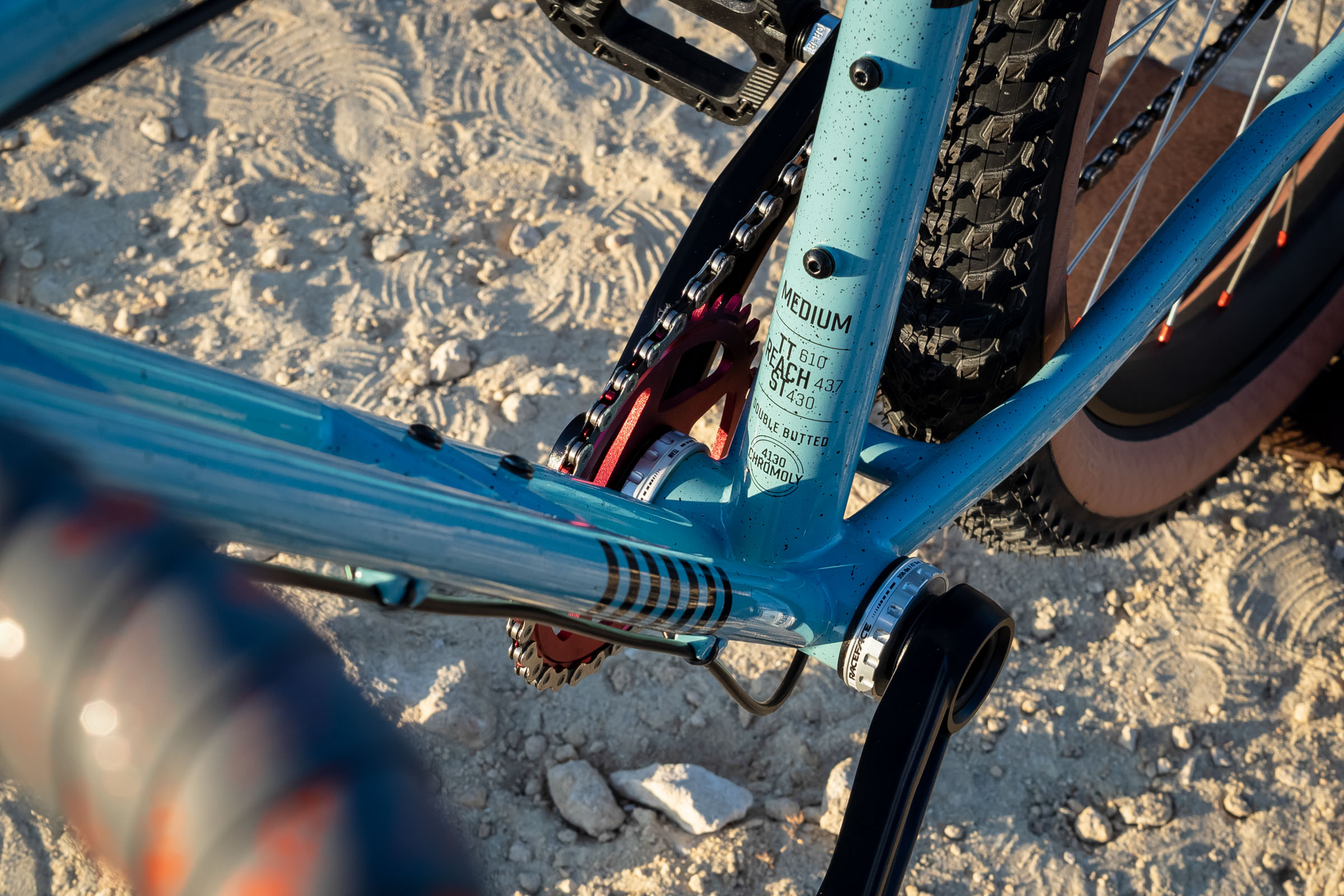

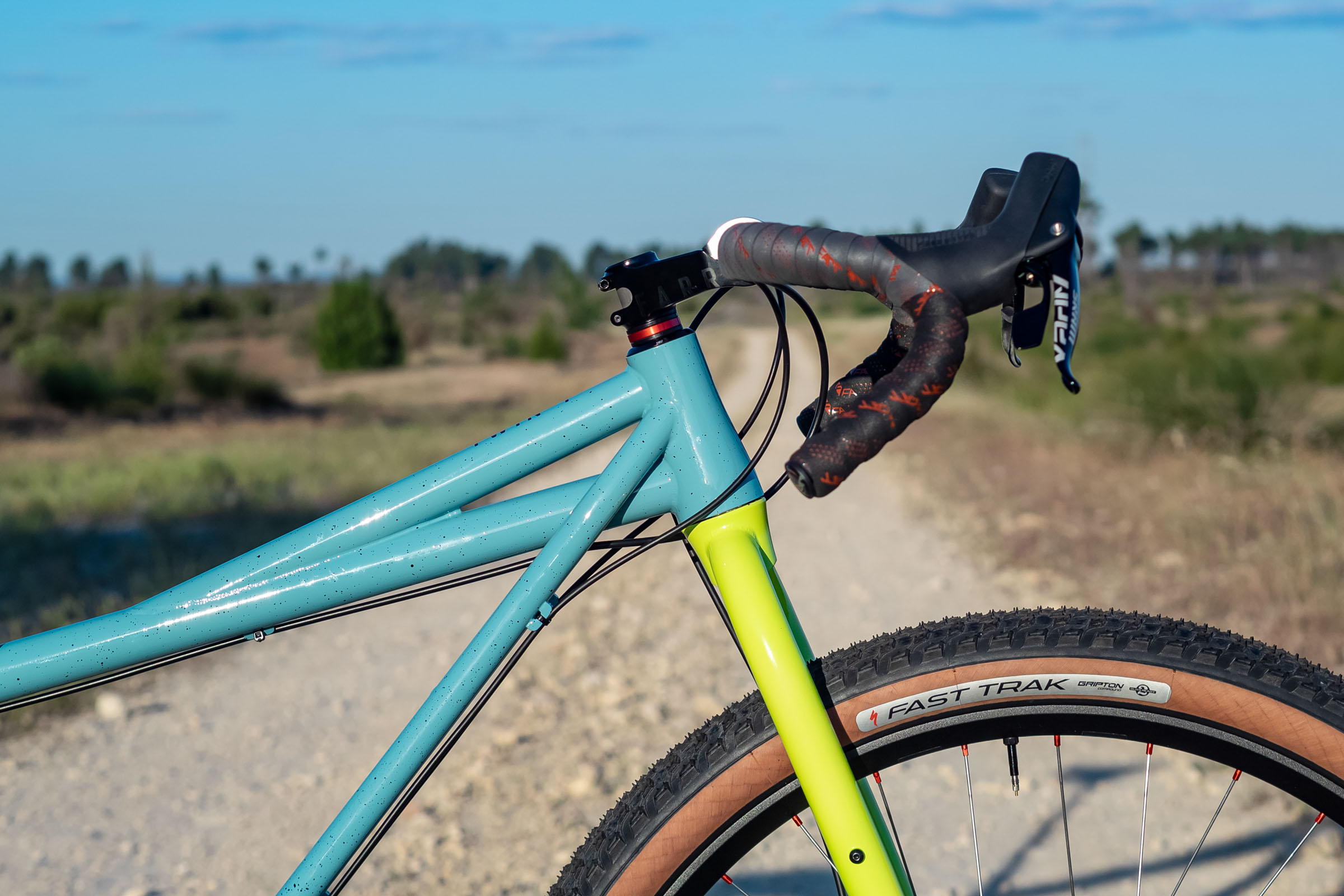

Farr Twin-T Gallery
Farr’s Twin-T frame is available for $895 starting today. More info and purchase at Farr.
