Ragley Adds a Gravel Bike to Its Lineup, the Trig

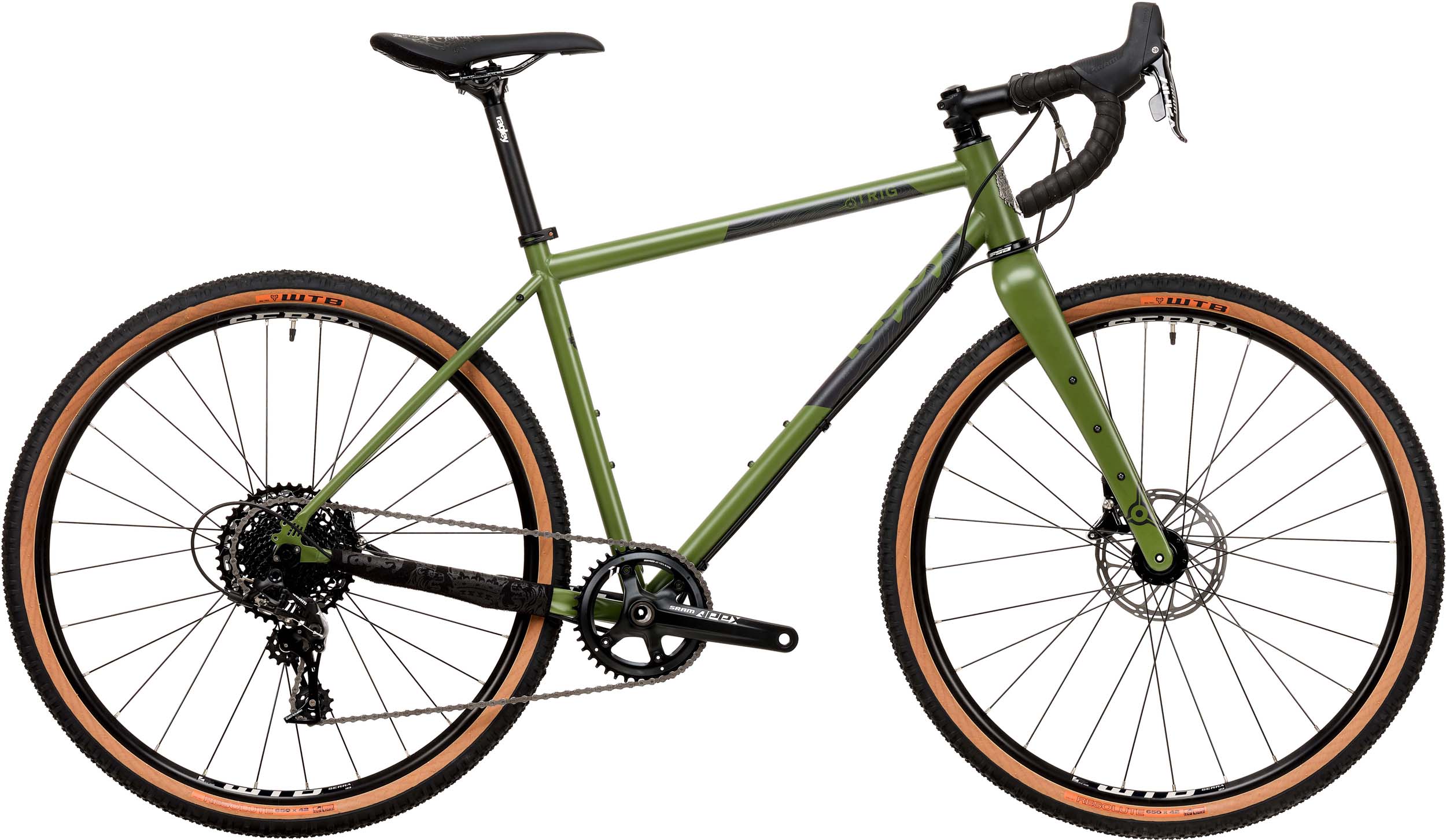

If you’re a mountain bike company, you pretty much have to have a gravel bike on the roster these days. UK brand Ragley is the latest to the party, its Trig gravel bike is a pretty impressive package. You get a 4130 Chro-mo steel frame, a beefy carbon fork with cargo bosses, fender mounts, clearance for a 27.5″ x 2.1″ tire and well thought out build.

Description

The Trig has masses of versatility to allow riders to explore further than before. Set yourself a new adventure to the middle of nowhere and let the Trig take you there.

The Trig frameset features a 44mm headtube, multiple bottle cage mounts and tyre clearance to run 700c/650b XC/Gravel/Adventure tyres or even 27.5” Mountainbike tyres up to 2.1” wide and even dropper post compatability.

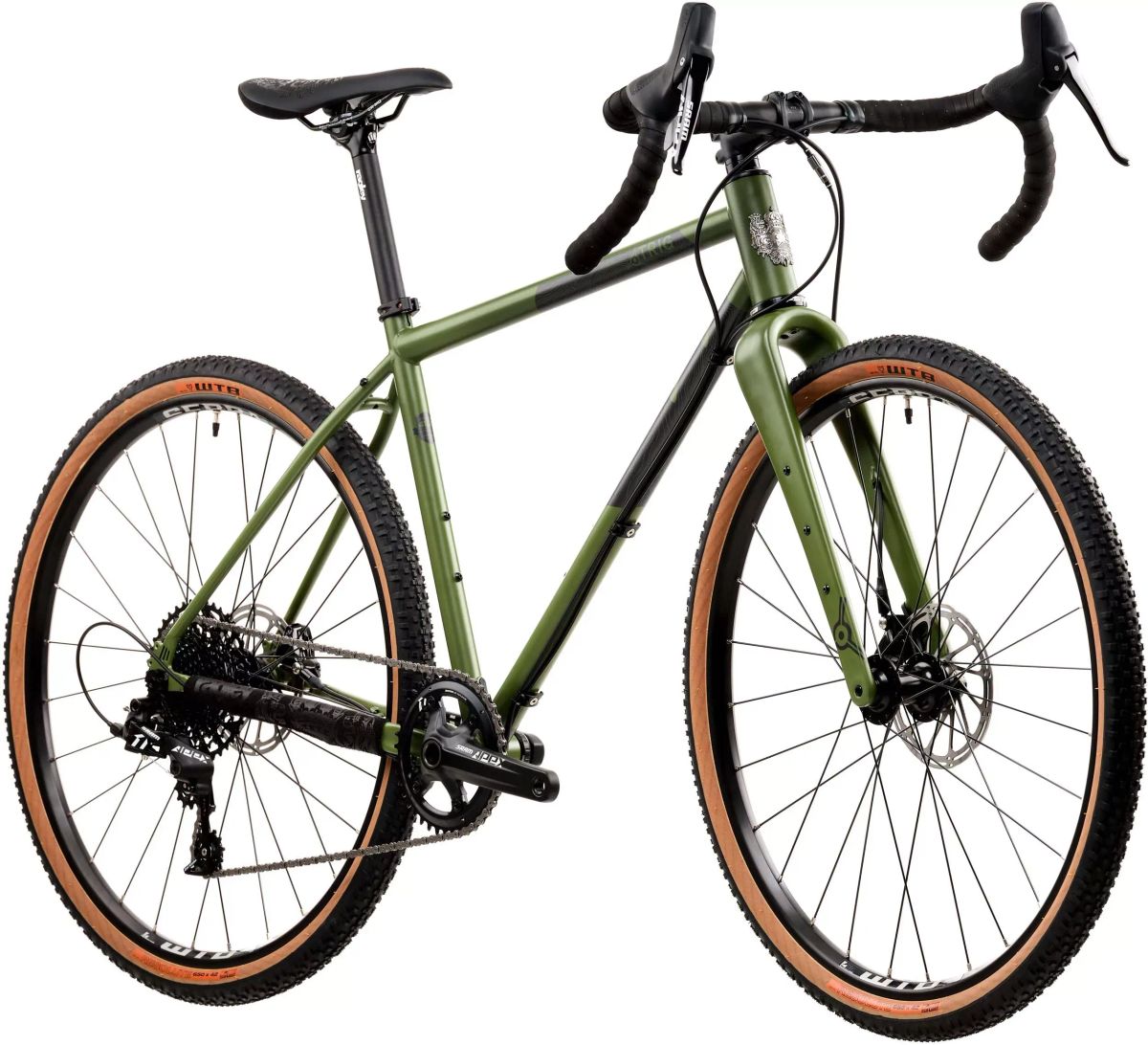

Ragley Adds a Gravel Bike to Its Lineup, the Trig 4

The frame is engineered from custom triple butted 4130 Chromoly steel tubing resulting in a frame kit that is lightweight and supple enough to provide comfort on longer trail rides whilst robust and stiff enough to take some serious abuse. The carbon fork features a 12mm thru axle and frame features a 142x12mm thru axle for maximum stiffness.

Specifications

  • Headset – FSA NO.9
  • Handlebar – Ragley 6061 Alloy
    • 19″ 420mm, 20/21.5/23″ 440mm
  • Stem – 6061 Alloy
    • 19″ 70mm, 20″ 80mm, 21.5/23″ 90mm
  • Bartape – Black Cork Cushion Bartape
  • Wheels – WTB Serra – 12mm front / 142mm rear
  • Tyres – Resolute 650×42 TCS Light/Fast Rolling Tan Sidewall F&R
  • Crankset – SRAM APEX 1 XSYNC 40t – 170mm
  • Cassette – SRAM 11-42T
  • Shifter – SRAM APEX Long Cage
  • Brakes – SRAM SB HRD APX 160mm F&R
  • Saddle – Ragley Brown
  • Seatpost – Ragley 27.2x400mm
  • Extras – Wheels come taped for tubeless & tubeless valves are included

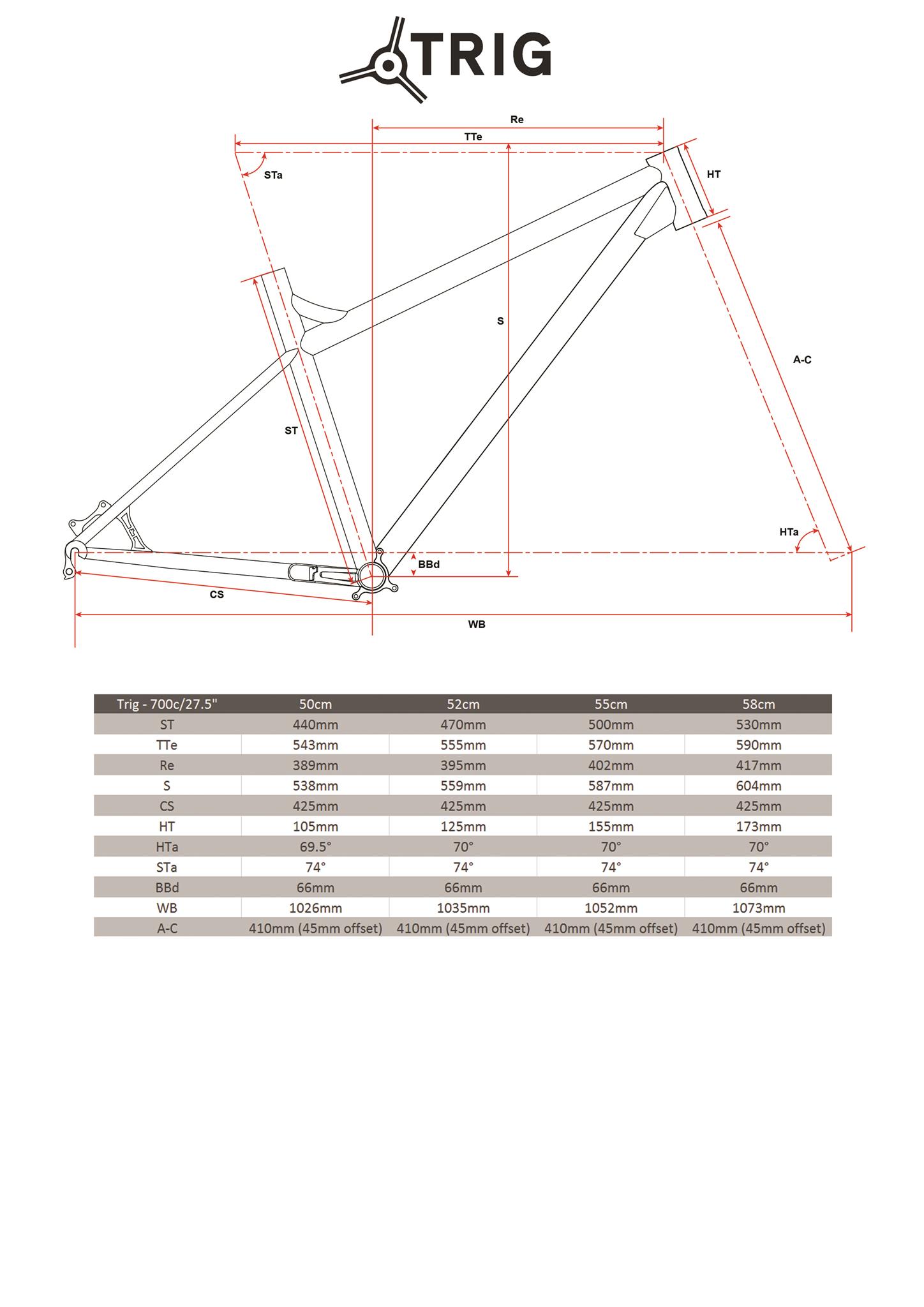

Geometry

Ragley Adds a Gravel Bike to Its Lineup, the Trig 5

Features

• 5 Year Warranty and lifetime crash replacement
• 4130 Chro-mo steel frame & Carbon fork
• ISO 4210 Certified
• Head Angle: 70˚Static
• Effective Seat Angle: 74˚
• Chain stay length: 425mm
• Seat post: 27.2mm
• Front Axle: Ragley 12mm x 100mm Thru-Axle
• Rear Axle: Ragley 12mm x 142mm Thru-Axle
• BB Shell: 68mm BSA
• Headset: ZS44/28.6 | ZS44/40
• Wheel Size: 700c
• Max Tyre Size: 700x40c/27.5×2.1”
• BB Drop: -66mm
• Size Options: S – 19”, M – 20”, L – 21.5”, XL – 23”
• Rack & Fender mounts
