Nicolai Bikes Argon GX Gravel Bike Has Some Nifty Engineering

Nicolai Bikes Argon GX Gravel Bike Has Some Nifty Engineering

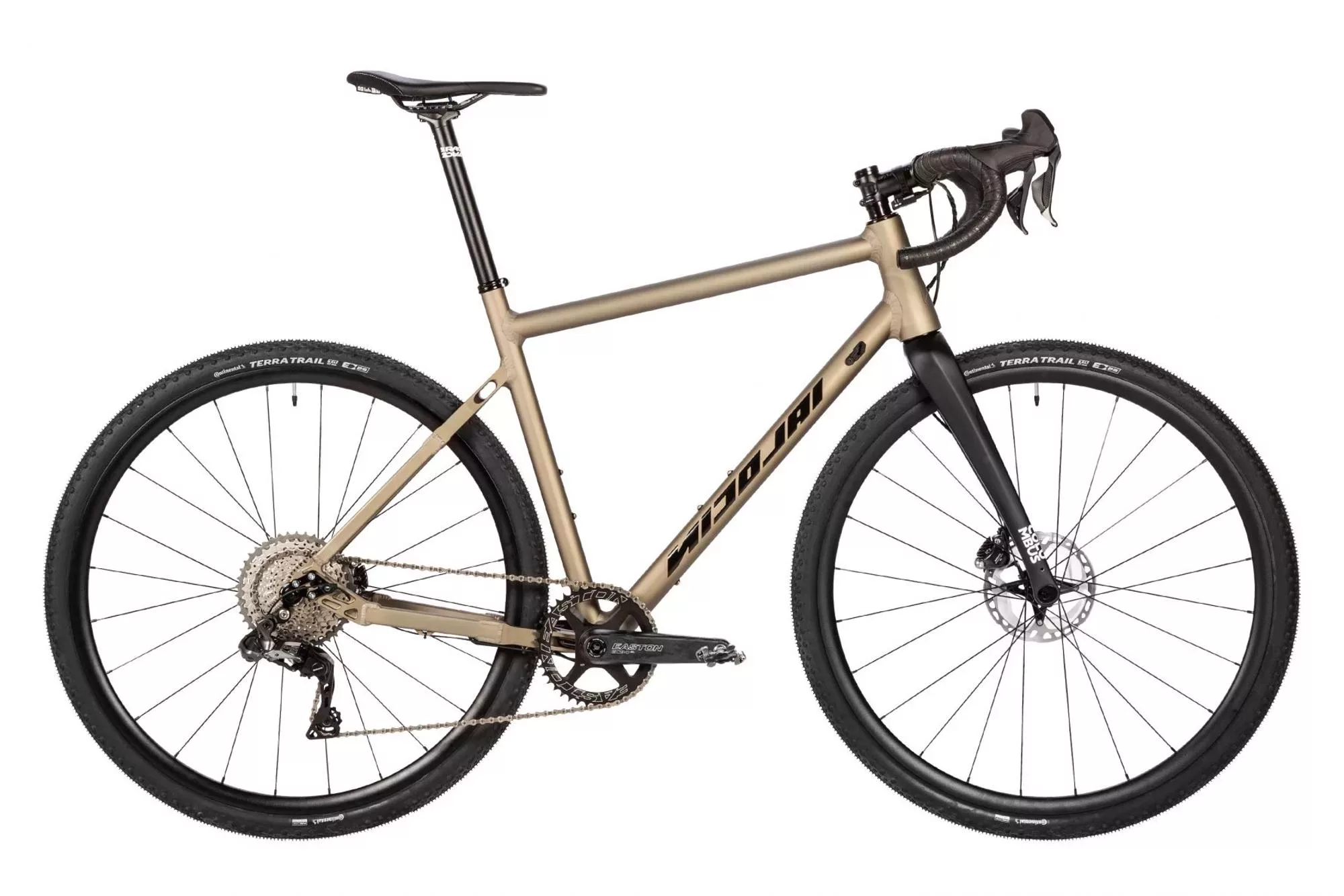

The ARGON GX, latest addition to NICOLAI’s ARGON family, is an attempt to build the perfect bike for on- as well as off-road riding. Nicolai have designed a frame that will adapt to just about any build configuration without sacrificing weight or robustness. To build a lightweight frame that can take a hit and dissipate big impacts the German brand relied on aircraft grade aluminium (7020-T6). Sections of the chain and seat stays are machined, and the individual frame tubes are welded together by hand. NICOLAI imposes no weight limit on the frame and offers a 5-year guarantee that remains intact if you race.

Nicolai offers plenty of options when you select a build for the bike, allowing you to tailor the ARGON GX to your intended use. The rear triangle will accommodate up to a 50 mm wide 650B tires (or 45x700C). Up front, you can choose between a rigid gravel fork or a suspension fork with up to 40 mm travel. Thanks to a 31.6 mm seat tube, you’ll have plenty of options for modern dropper posts with internal cable routing.

The build selector even allows you to choose between drops or flat mountain bike bars. For builds, you can run most any 1x and 2x groupset, though the 2x GRX groupset will limit the tire clearance to 42 mm.

The ARGON GX is ready for any gravel adventure or bikepacking trip as NICOLAI have included mounting points for mudguards, racks, and up to three bottle cages on the aluminium frame. For the paint job, you’ve got a choice from over 50 glossy or matte colours. The frame is also available in hard-anodized black, bronze or titanium.

The frame is available in six sizes, from XS to XXL, and it costs from € 1,449 (about $1750 UDS).

NICOLAI ARGON GX Geometry

SizeXSSMLXLXXL
Seat tube460 mm490 mm510 mm530 mm550 mm570 mm
Top tube528 mm545 mm560 mm580 mm595 mm615 mm
Head tube120 mm130 mm150 mm170 mm180 mm190 mm
Head angle70.5°70.5°71.0°71.0°71.5°71.5°
Seat angle74.0°74.0°73.5°73.5°73.0°73.0°
Chainstays430 mm430 mm430 mm430 mm430 mm430 mm
BB Drop75.0 mm75.0 mm72.5 mm72.5 mm72.5 mm72.5 mm
Wheelbase1,012 mm1,019 mm1,036 mm1,052 mm1,062 mm1,082 mm
Reach371 mm380 mm390 mm403 mm410 mm425 mm
Stack548 mm559 mm575 mm596 mm606 mm625 mm

For more information, visit www.nicolai-bicycles.com
