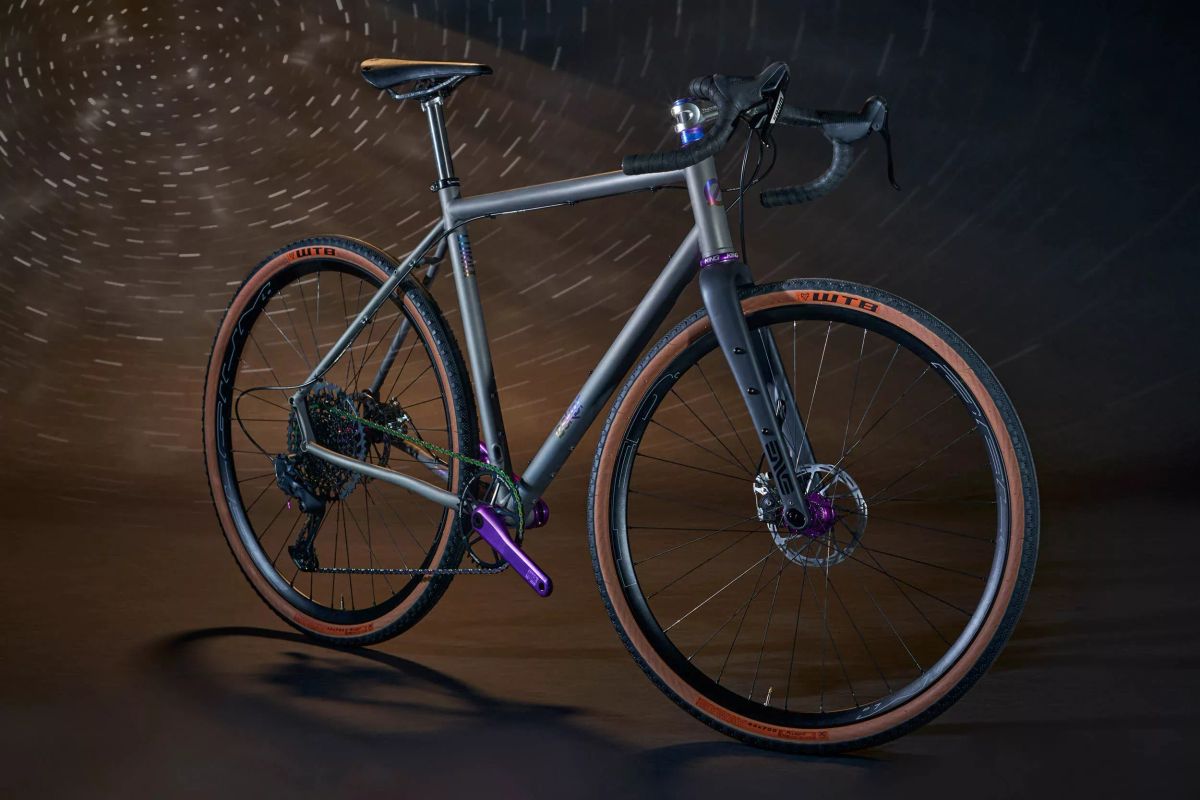

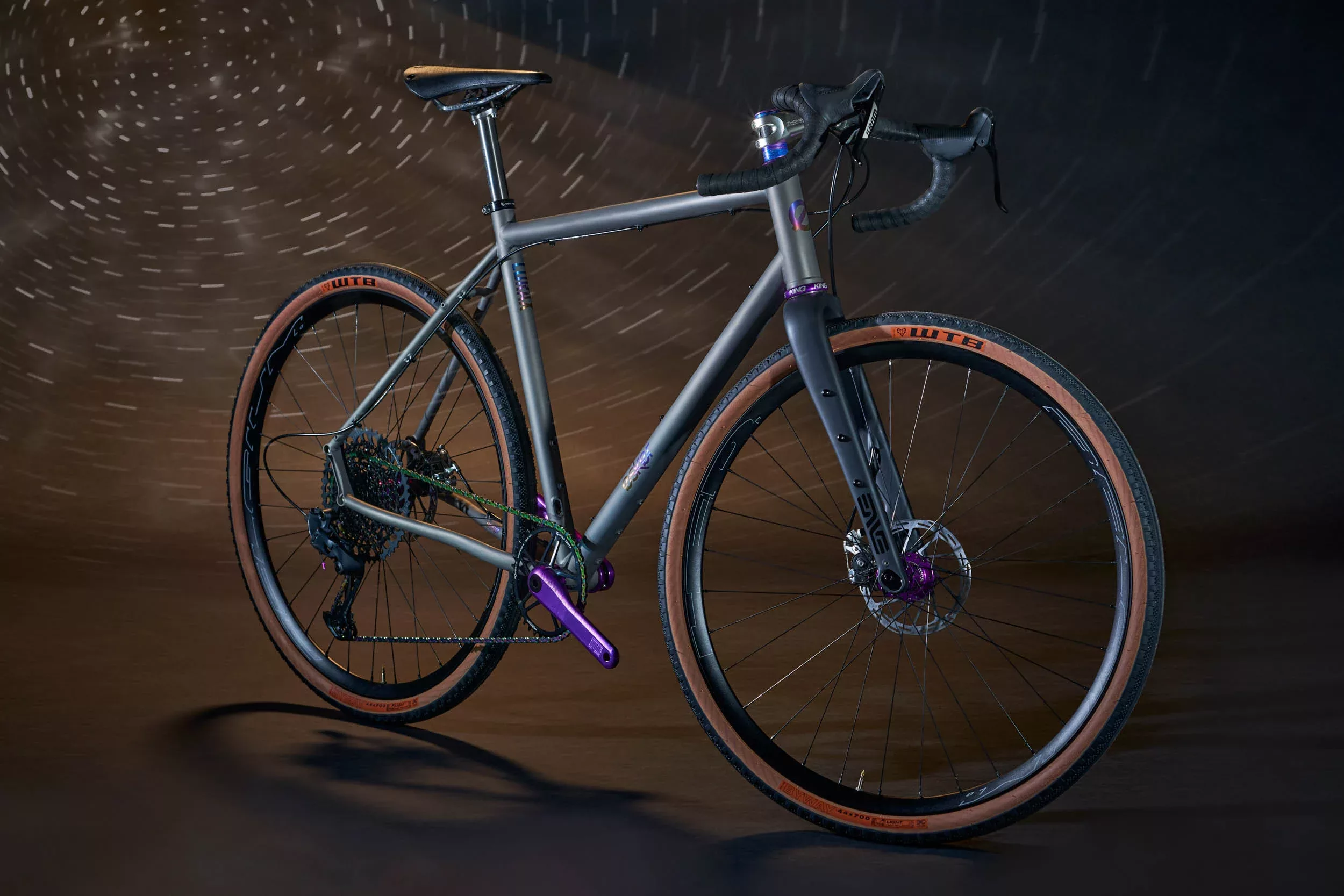

Esker Lorax Ti
Who will speak for the trees? Aboard Lorax Ti, it might be you.
The Esker Lorax Ti has generous tire clearance, versatile geometry and tons of mounting options for bags, packs, fenders and racks. There’s also internal dropper post routing and the ability to mount 29×2.0″ tires. Thehe Lorax Ti is made from double butted, cold shaped 3al/2.5v Titanium and uses Esker’s Portage Dropout System.
Fit – 700c wheels with 50c tire capacity or go bigger on 650b with 2.1″ nobbies
Fork – 400mm rigid fork up to 50c tires, or gravel suspension fork up to 60mm travel.
Frame – 3Al/2.5v Titanium with Esker’s proprietary Portage Dropout System for a wide range of adjustment
Frame Specs
| Frame Material | Seamless, butted, and cold-shaped AI3/2.5v titanium |
| Frame Includes | Wolf Tooth Headset and Seatpost collar, Portage 142 dropouts and 167mm rear axle |
| Rear Dropout Spacing | 12x142mm |
| Thru Axle | 142mm Hub Spacing / 167mm axle length / M12 x 1.75 |
| Head tube Diameter | 44mm ID, 50mm OD |
| Headset lower stack height | 13mm |
| BB Type | Threaded 73mm English |
| Wheel Size | 700cx50c with fenders. Chainstay length measured in the middle Portage dropout position |
| Seatpost | 34.9 clamp, 31.6 post, internally routed for dropper seatpost |
| Max Chainring | 42t round / 40t oval / 49mm Chainline |
| Bake Mount | 160mm native IS mount Shimano mount: SM-MA-F160P/S or SM-MA-R140P/S – SRAM mount for 160mm: 0mm IS disc brake adapter |
The Lorax Ti is solid as frame-only, including Wolf Tooth seat post collar and headset for $2,300 USD. Check it out at EskerCycles.com.
