Thomson’s Piedmont Titanium Gravel Bike Build Kit
Thomson just added a second frame to its lineup, their new titanium gravel bike, the Piedmont. The frameset comes in a based model with Thomson Elite series stem, post, clamp, alloy bar and carbon fork included. You can also opt for a discount on more premium cockpit items like their titanium or carbon goods. Or you can go big and throw in a Thomson dropper.

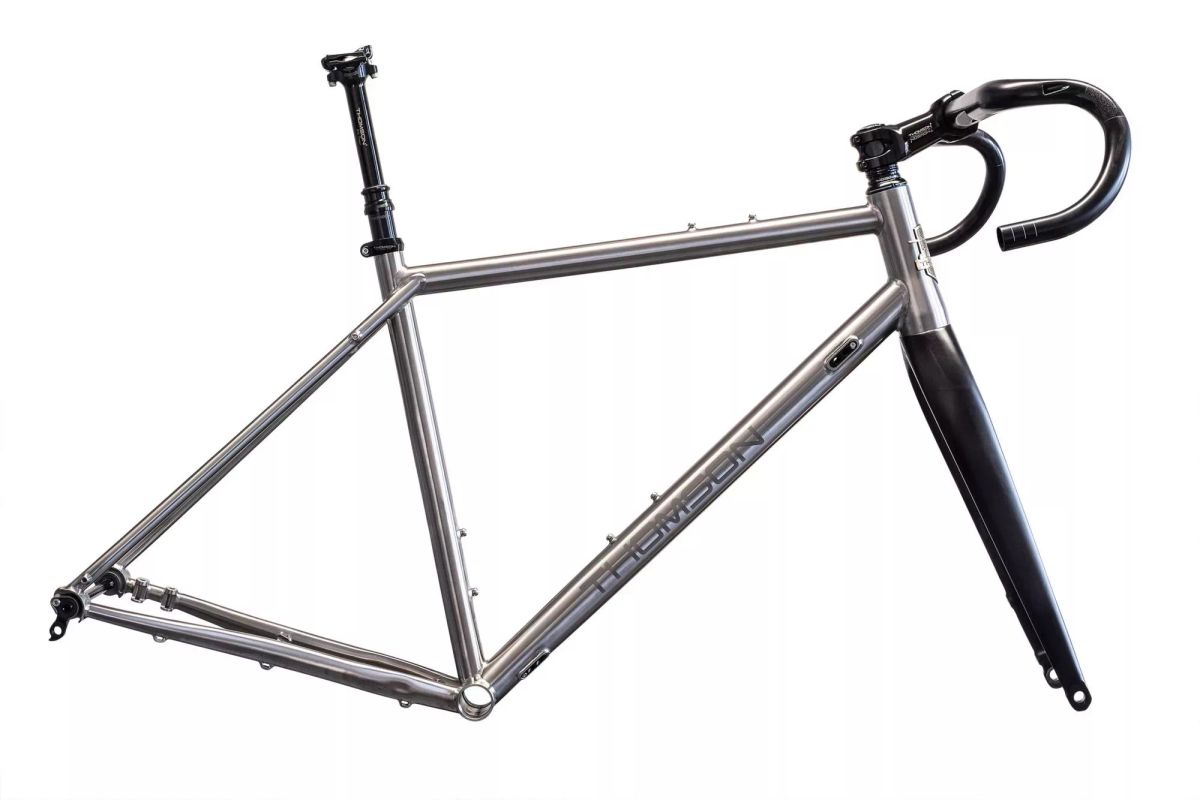

Thomson Piedmont Details
Say hey to our titanium gravel frame set, an homage to the diverse Georgian terrain. From the fall line, to the red clay of middle Georgia, through the plateaus and up to the foothills of the Blue Ridge Mountains, this is Thomson’s rugged outdoor paradise.
The Piedmont is our namesake… a hand crafted 3al 2.5v aircraft grade custom drawn Titanium frame set. It’s designed to have a slack 70 degree head tube making it both smooth and fast on the flats, then ready to rock when the terrain goes up.
Details include 44c tire clearance, tapered 1 1/8th to 1.5 internal head set, internal routing, 142×12 through axle, 27.2 post, brushed finish with Sandblasted logos and a custom head tube badge.
Frame sets come equipped with a full Thomson cockpit of your choice… dial it in and make it yours. From our Elite series, Masterpiece, Ti, carbon fiber or droppers, pick and choose from all of your favorite Thomson components, for the ultimate build kit.
The Piedmont is handmade in Taiwan. We partner with titanium specialists who also produce our collection of Ti posts and handlebars.
Catch the limited pre book of the Piedmont, frame sets/parts drop ship February 2021.
XS | S | M | L | XL | |
REACH | 374mm | 380mm | 384mm | 397mm | 410mm |
TOP TUBE LENGTH | 522mm | 532mm | 546mm | 567mm | 587mm |
STACK | 515mm | 531mm | 566mm | 593mm | 618mm |
WHEELBASE | 1006mm | 1018mm | 1035mm | 1058mm | 1079mm |
CHAINSTAY LENGTH | 428mm | 428mm | 428mm | 428mm | 428mm |
FRONT CENTER | 588mm | 599mm | 616mm | 639mm | 661mm |
BB DROP | 70mm | 70mm | 70mm | 70mm | 70mm |
SEAT TUBE ANGLE | 74° | 74° | 74° | 74° | 74° |
HEAD TUBE ANGLE | 70° | 70° | 70° | 70° | 70° |
SEAT TUBE LENGTH | 401mm | 451mm | 491mm | 511mm | 511mm |
HEAD TUBE LENGTH | 97mm | 114mm | 151mm | 180mm | 206mm |
FORK RAKE | 45mm | 45mm | 45mm | 45mm | 45mm |
FORK ATC | 395mm | 395mm | 395mm | 395mm | 395mm |
See more at Thomson.
